Question

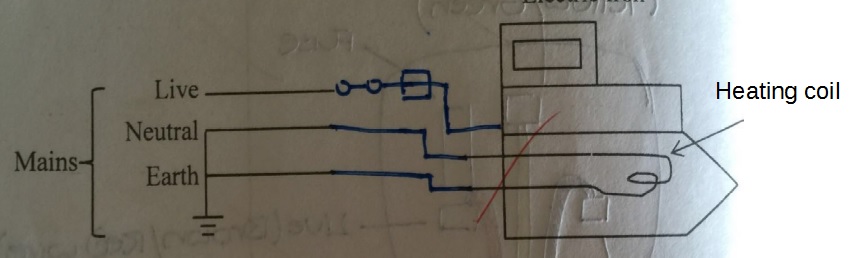

What are the errors in the diagram below?
Answer

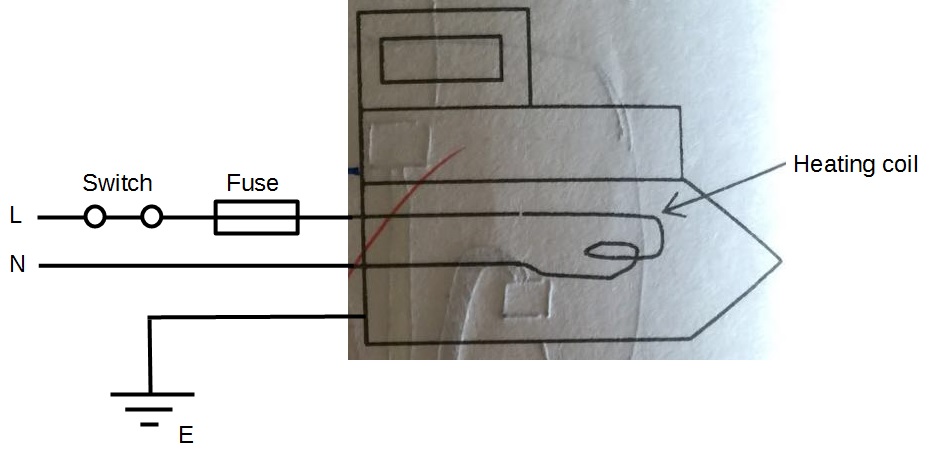

The Earth wire has to be connected to the metal casing.
The Live and Neutral wires must be connected to the heating coil.
The switch and fuse must be on the Live wire.
What are the errors in the diagram below?
The Earth wire has to be connected to the metal casing.
The Live and Neutral wires must be connected to the heating coil.
The switch and fuse must be on the Live wire.
