Electromagnetism

Yusong 25 Aug 2016

Question

The figure shows a long horizontal wire PQ carrying a steady current of 50A in the direction QP. A copper wire RS of diameter 0.40mm hangs horizontally at a distance of 0.15m below wire PQ using some threads.

A current flows through RS such that there is no tension in the threads.

Identify the direction is the current and draw a free body diagram of the forces acting on RS.

Answer

If the current in RS is flowing opposite to the current in PQ, the two wires will repel each other.

Since the wire is suspended in equilibrium, the resultant force must be zero.

Fup = Fdown
T1 + T2 = FB + W

We can see that it is not possible for the tension to be zero.



If the current in RS is flowing in the same direction as the current in PQ, the two wires will repel attract other.

Since the wire is suspended, the resultant force must be zero.

Fup = Fdown
T1 + T2 + FB = W

When the tensions in both threads are zero, we have

FB = W

Hence, current in RS must be flowing in the same direction as PQ, in the direction SR.

The free body diagram when there is no tension in the threads is as shown below:

Jia Yee 25 Aug 2016

Question

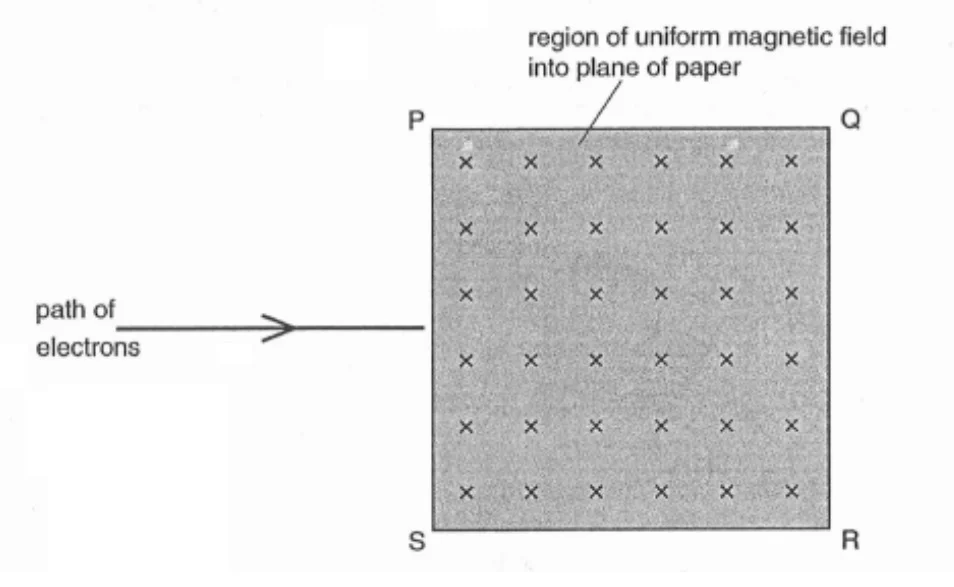

The figure below shows a region PQRS of a uniform magnetic field directed downwards into the plane of the paper.

Electrons, all having the same speed, enter the region of the magnetic field.

a) On the figure, show the path of the electrons as they pass through the magnetic field emerging from side QR.

b) A uniform electric field is also applied in the region PQRS so that the electrons now pass undeflected through this region. On the figure, mark with an arrow labelled E, the direction of the electric field.

c) The undeflected electrons in (b) each have charge -e, mass m and speed v. State and explain the effect if any, on the particles entering the region PQRS of the same magnetic and electric fields in (b) if the particles each have

i) charge -e, mass m and speed 2v.

ii) charge +e, mass m and speed v.

Answer

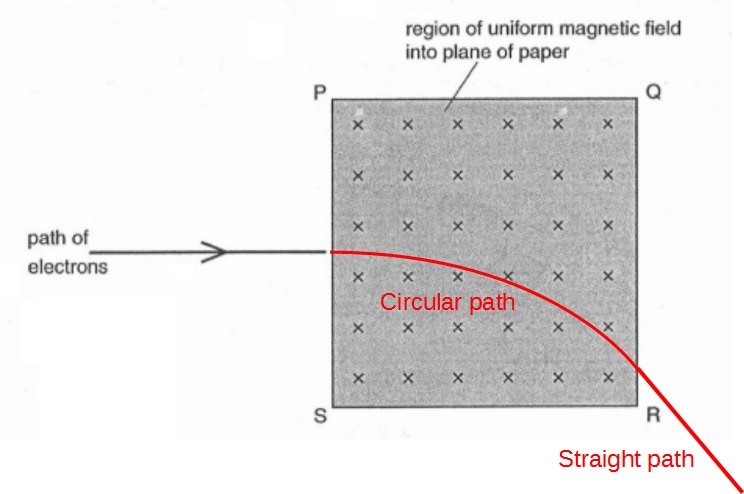

a) Since the electrons are moving to the right, it is the same as a current flowing to the left. By using Flemming’s left hand rule, the magnetic force on the electrons is downwards.

According to Flemming’s left hand rule, the magnetic force will always be perpendicular to the velocity of the electrons. This means that it provides a centripetal force. Hence, the electrons will move in a circular path as shown.

Once the electrons exit the magnetic field, they will move in a straight path since there is no resultant force acting on the electrons. We ignore the effects of the weight because the acceleration of due to the weight is too small to cause any significant change in the velocity of the electrons.

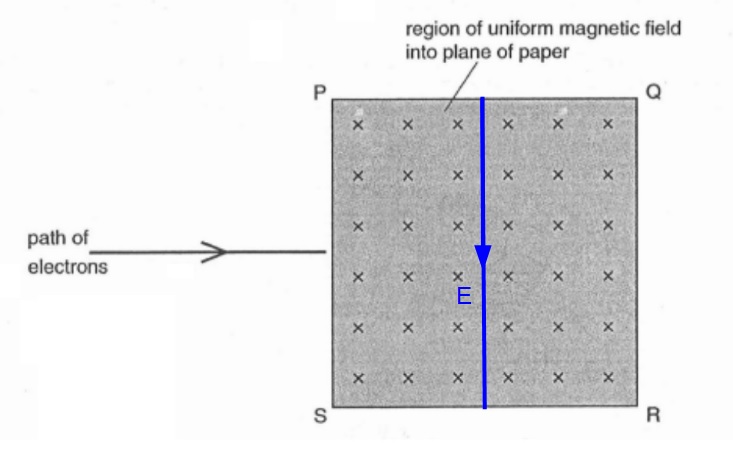

b) In order for the electrons to pass through undeflected, the resultant force on the electrons must be zero. Since the magnetic force on the electrons is downwards, the electric force acting on the electrons must be of the same magnitude and acting upwards.

In order for the electric force to be acting upwards, electric field lines must be directed downwards. (Since electrons are negatively-charged, they will experience an electric force in the opposite direction to the electric field lines.)

c)  When an electron is moving with a speed of v, it passes straight through without any deflection. The magnetic force and electric forces on the electrons are given by the following formulae:

FB= Bqv
FE = qE

Since the downwards magnetic force is now greater than the upwards electric force, the resultant force is downwards and the particle will curve downwards as it passes through the region.

ii) When a particle of the opposite charge (+e) and mass (m) and same speed (2v) moves through the field, the directions of the magnetic force and electric forces are now reversed.

The electric force acts downwards and the magnetic force acts upwards on the particle.

However, both forces are still of the same magnitude and the resultant force is still zero. Hence, the particle will still pass through the region undeflected.

Minqi 19 May 2016 - 3

Question

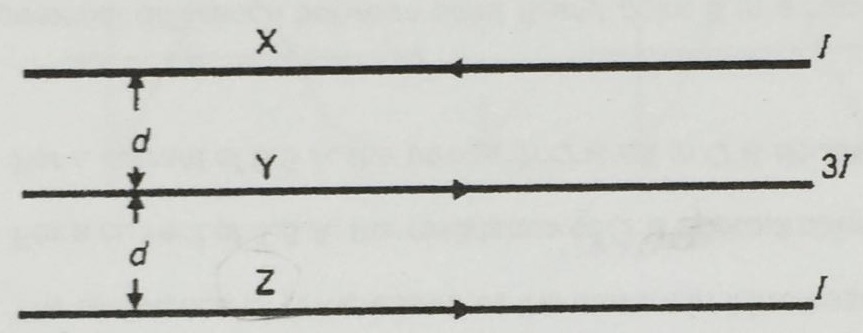

The diagram below shows three parallel wires X, Y and Z placed in a horizontal plane. Wires X and Z carry current I in opposite directions. Wire Y carries a current of 3I in the direction shown and is equidistant from the other wires.

The magnitude of the force per unit length between two parallel wires placed a distance apart, each carrying a current of I is 2.0 x 10-6 N m-1. What is the direction and magnitude of the net force per unit length acting on the wire Z?

(The force per unit length is proportional to the product of the currents in the two wires and inversely proportional to the separation between them.)

Answer

Based on the information regarding the forces per unit length between two wires,

\( {F \over m} = k {I_1 I_2 \over r} \)

Based on the value of the force given,

The force between Y and Z is attractive because the currents in both wires are flowing in the same direction.

The force between X and Z is repulsive because the currents in both wires are flowing in the opposite directions.

Hence, the resultant force per unit length is 5.0 x 10-6 N m-1 upwards towards Y.

David 07 May 2016 - 5

Question

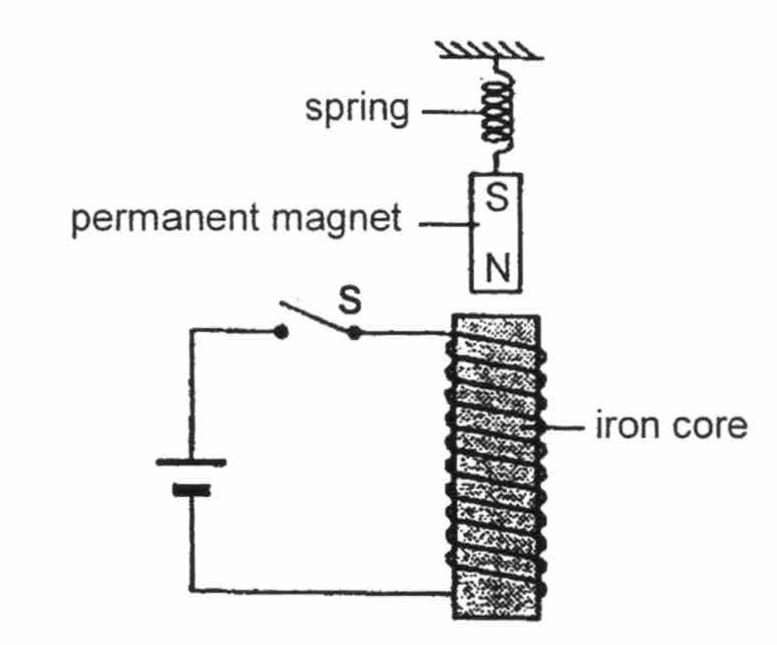

38. The figure below shows a permanent magnet suspended from a spring placed right on top of an electromagnet.

What will happen to the permanent magnet once the switch S is turned on?

Answer

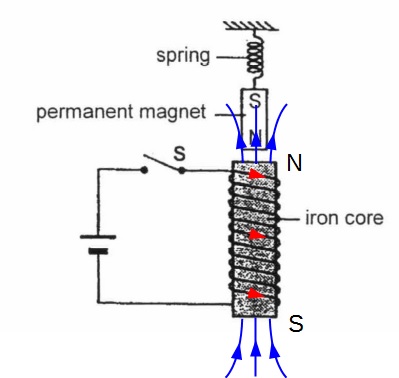

When the switch is closed, current will flow in the direction as shown by the arrows on the wires in the diagram below. Based on the right hand-grip rule, the magnetic field produced by the current will be as shown below.

This means that the top of the iron core will be a magnetic North pole and repel the North pole of the permanent magnet. Hence, the permanent magnet will be pushed upwards.

Clive 02 Mar 2016

Question

Fig 8.1 for physics question by Clive

On Fig, 8.1, sketch on the card the pattern of the magnetic field produced by the current in the wire. The detail of your sketch should suggest the variation in the strength of the field. Show the direction of the field with arrows.

Answer

A straight current carrying conductor will produce a circular magnetic field. The direction of the magnetic field can be determined by the right hand grip rule.

The direction of current is indicated by the thumb and the direction of the magnetic field is given by the fingers.

The magnetic field lines are closer together nearer the wire because the magnetic field is stronger nearer the wire.
